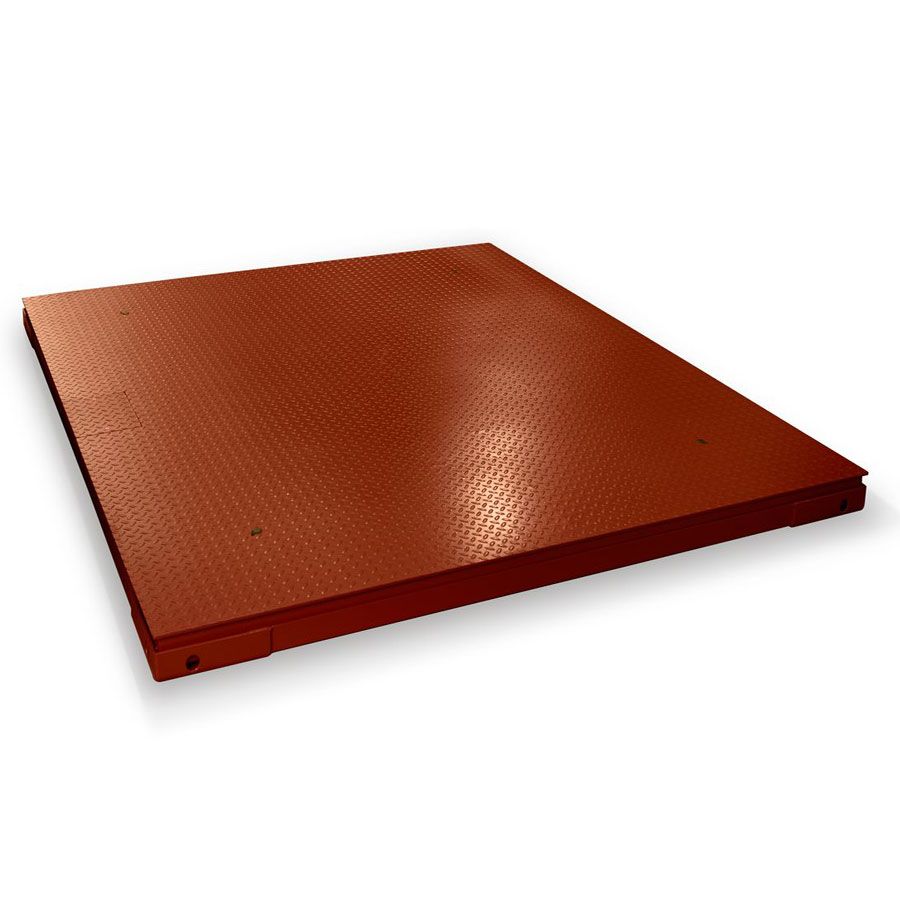

RPS Floor Scale
Experience unparalleled precision with B-TEK’s RPS Floor Scale. Engineered for superior accuracy, the RPS Floor Scale boasts a state-of-the-art suspension-style weighing mechanism complemented by self-aligning load cells. This innovative design ensures exceptionally precise measurements, with minimal need for adjustments.
Experience unparalleled precision with B-TEK’s RPS Floor Scale. Engineered for superior accuracy, the RPS Floor Scale boasts a state-of-the-art suspension-style weighing mechanism complemented by self-aligning load cells. This innovative design ensures exceptionally precise measurements, with minimal need for adjustments.
The integrated fixed receiver cups within the frame guarantee stability by reducing the risk of parts loosening or falling out of tolerance. With a remarkable 100% end load capacity, the RPS Floor Scale offers enhanced protection and reliability for your weighing needs. Its lower deck height is meticulously designed to address height restrictions and enhance accessibility across various applications, including hoppers, shelving, and conveyors.
Each load cell utilizes rocker pin suspension, automatically aligning load forces to ensure reliable and repeatable weighing. Tested for durability, the suspension-style design delivers superior performance compared to conventional threaded feet.
Upgrade your weighing capabilities with B-TEK’s RPS Floor Scale—where precision meets unmatched durability.
- Accurate Weighing - Suspension-style weighing system and self-aligning load cells ensure exact and consistent measurements
- Minimal Adjustments - Fixed receiver cups built into the frame reduce maintenance time and the potential for misalignment
- Robust Design - 100% end load capacity provides superior durability and protection
- Optimized Accessibility - Lower deck height is perfect for use in space-restricted areas, such as hoppers, shelves, or conveyors
Specifications
- NTEP COC: 94-092A4
- Type: Above ground or pit
- Scale Capacity: 1,000 x 0.2 lb / 2,500 x 0.5 lb / 5,000 x 1 lb / 10,000 x 2 lb
- Scale Height: 3" nominal (1,000 - 5,000) / 3-1/2" nominal (10,000)
- Available Sizes: 3' x 3' - 5' x 7' - Custom sizes upon request
- Weighbridge: 1/4" carbon steel tread deck plate w/ formed channel sub-structure / 1/4" 304 stainless steel smooth deck plate w/ formed channel sub-structure
- Deck: Top access junction box, threaded lifting eye bolt holes: 5/8"-11 eyebolt
- Paint System: Alkyd Enamel (carbon steel) - All exposed surfaces are media blasted to a clean, consistent appearance (stainless)
- Load Cell: Stainless steel IP67, 350 Ohms, 2.0 mV/V, FM Approved
- 1,000 lb capacity: (4) 500 lb cells
- 2,500 lb capacity: (4) 1,250 lb cells
- 5,000 lb capacity: (4) 2,500 lb cells
- 10,000 lb capacity: (4) 5,000 lb cells
- Leveling foot: Fixed rocker pin - no height adjustment
- Junction Box: NEMA 4 fiberglass reinforced plastic (FRP) with signal trim summing board
